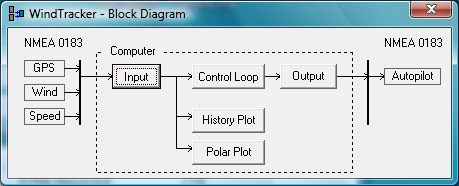

WindTracker - Block Diagram Window

The WindTracker block diagram illustrates the three main parts of the program:

• Input Data
• Control and Display
• Output Data

The Input button displays the input Comm Port selection and NMEA 0183 options.  The Control Loop button displays options for computing true wind from apparent wind and controlling the Autopilot.  The Output button displays the output Comm Port selection and NMEA 0183 options.

The History Plot button displays the tracking and wind data over time.  The Polar Plot button displays the performance polar data.
